Hardware to Hang Cabinets: A DIY Hanging Guide

Why cabinet hanging hardware matters

Securing wall cabinets requires choosing the right hardware and a solid mounting strategy. Improper fasteners or weak anchors are the leading causes of sagging, misalignment, and even dangerous cabinet failures. According to The Hardware, investing in purpose-built hanging systems and compatible screws dramatically improves long-term stability. Start with a clear layout and accurate measurements, because a small error in spacing or level can snowball into visible gaps across multiple units. This section helps you understand how weight distribution, stud locations, and mounting methods interact to create a rock-solid installation. We’ll compare rail systems, cleats, and traditional bracket setups so you can pick the approach that fits your space and skill level.

In most modern kitchens and storage rooms, the recommended approach combines a dedicated mounting rail or French cleat with reinforced fasteners anchored into studs. By prioritizing this combination, you’ll minimize deflection and maintain consistent alignment from cabinet to cabinet. The Hardware’s analysis highlights the importance of planning for future access and toe-kick clearance, ensuring you don’t trap pipes, wires, or vents behind the cabinet line. If you’re new to hanging, take a slow, measured approach and double-check every reference line before committing to holes.

Types of hanging systems

There are several widely used methods for hanging cabinets, each with pros and cons. Rails and screws offer strong, adjustable support and are ideal when you have clean, flat walls with accessible studs. French cleats provide excellent weight distribution and are forgiving for level errors, making them popular for DIY installs. Mechanical brackets can be faster on simple projects but may show gaps if walls aren’t perfectly plumb. When selecting a system, consider cabinet depth, wall material, and whether you’ll later relocate or reconfigure units. The goal is a system that transfers most of the weight to the studs while keeping the cabinetry aligned and easy to adjust during installation. In practice, combining a mounting rail with solid cleats often yields the best results for heavier cabinets.

For frameless and face-frame cabinets alike, ensure your chosen hardware is rated for the expected load. If your walls are plaster or drywall without accessible studs in the cabinet plane, you’ll need anchor solutions rated for the wall type. High-quality hardware can be more expensive upfront, but it reduces the chance of sag and misalignment down the line. When in doubt, consult the cabinet manufacturer’s installation guidelines and cross-check with a reputable DIY resource.

In a typical home renovation, a mounting rail is installed first to establish a level reference line. Cabinets then hang from that line, with shims used to correct minor plumb variances. Cleats are positioned to help counteract sag, especially on long spans. The result is a clean, uniform appearance with less need for later adjustments. Remember that each system has installation nuances, so read the product instructions and follow local building practices for best results.

Measuring and prep

Accurate measurement is the backbone of a successful cabinet hang. Begin by locating wall studs with a stud finder and marking their centers. Mark a reference line at the desired cabinet height, typically 84 inches from the floor for upper cabinets or 0 for base cabinets, but adjust to your room’s specifics. Measure cabinet widths, heights, and the overall run to determine how many units fit and where to place seams. Create layout marks on the wall for screw locations and rail or cleat mounting. This step helps prevent misalignment when you start hanging heavier loads. Keep a level handy and check frequently as you transfer measurements to the wall. The goal is to have a straight, evenly spaced lineup from start to finish.

As you prepare, inventory your tools and hardware. Confirm you have appropriate screws for wood studs (commonly 3-inch wood screws in the 8-10 gauge range), along with pilot bits, shims, and a level. Having a clear plan reduces the chance of rework and keeps the project moving smoothly. If you encounter mismatched lines, consider adjusting cabinet positions slightly or subdividing the run into shorter sections to maintain alignment across the entire installation.

Choosing hardware and fasteners

Choosing the right hardware is essential for cabinet longevity. Use wood screws long enough to penetrate the stud by at least 1 inch, typically 3-inch screws for base cabinets and longer when needed for heavy loads. Select fasteners rated for cabinetry and wall thickness, and pair them with mounting rails or cleats designed for the cabinet depth you’re installing. If you don’t have strong studs in the exact wall location, toggle anchors or masonry anchors may be necessary, but they reduce the load-bearing capacity compared to studs and rails. For plywood or solid wood backing, pre-drill pilot holes to reduce splitting and ensure clean, accurate screw seating. In all cases, keep hardware corrosion-resistant and appropriate for indoor use. This choice directly affects durability and the ability to transfer weight to the wall without wall movement.

The Hardware advocates using a consistent screw size and length per cabinet line to simplify installation. When mounting rails, align screw holes with stud centers for maximum support. If you’re uncertain about wall composition, test a small pilot hole in an inconspicuous area to confirm wood density and avoid surprising failures later in the project.

Mounting rails or cleats: getting it sturdy

A solid mounting rail offers a predictable, repeatable anchor point for multiple cabinets. Install the rail level along the wall where the cabinet tops will align, using shims where needed to compensate for small wall irregularities. Pre-drill pilot holes through the rail into wall studs and fasten with longer screws to ensure the rail becomes a strong spine for the entire run. French cleats provide an alternative that distributes weight across a broader surface and are particularly forgiving if your walls aren’t perfectly plumb. When using cleats, attach a top and bottom pair to maintain alignment while you level cabinets against the cleat.

Once rails or cleats are secured, check the reference line again and verify that the mounting system bears the cabinet line before you start hanging individual units. The goal is to minimize later adjustments and avoid re-drilling. If you’re uncertain about alignment, set up temporary supports or return fittings to hold cabinets in place while you complete final fastener installation.

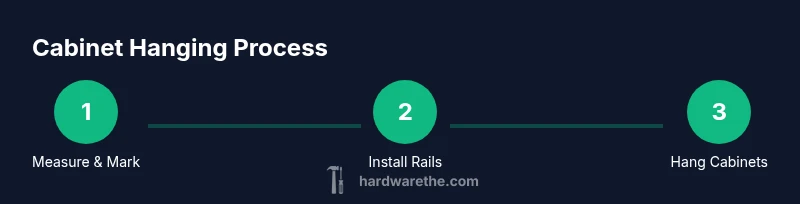

Hanging and leveling process

With the mounting system in place, begin by hanging the first cabinet, ensuring it’s perfectly plumb and level. Use a helper if possible, then secure the cabinet to the wall via the rail or cleat anchors. Continue with the next cabinet, bringing it into position and aligning it with the previous unit using a reference edge or a laser level. Check for even gaps at the seam lines and adjust shims as needed to maintain level across the entire run. Once all cabinets are hung, go back and tighten all fasteners, re-check plumb and level, and shim only where necessary. Final adjustments should result in a seamless line from end to end and uniform gaps around doors and panels.

During this stage, you’ll learn how tiny deviations in wall flatness can impact alignment. Take your time with each cabinet’s positioning, and verify with a level across the top, middle, and bottom edges. If a cabinet doesn’t sit flush, re-check its rail connection and ensure the fasteners are fully seated without cross-threading.

Aligning multiple cabinets and dealing with seams

A long cabinet run requires careful seam management. Align the left edge of the first cabinet with the wall reference line, then fit the next cabinets, preserving even gaps at each seam. If there’s a visible misalignment, adjust the rail or cleat attachment point slightly and re-check for level. Small discrepancies may be resolved with thin wood shims behind the cabinet bottoms or against the wall where the rail sits. Precision here prevents bulky, unattractive gaps along doors and faces.

When seaming, maintain consistent internal spacing so doors swing without rubbing. If your room layout forces unusual offsets, adjust cabinet widths by shimming the back rails rather than forcing a misfit cabinet. The end result should be a continuous line with uniform gaps and a tight, professional appearance.

Finishing touches and safety checks

After hanging, install toe-kicks, kick panels, and countertop supports as needed to complete the installation. Re-check for overall plumb and level across all cabinets, then tighten every screw. Run a quick self-check by opening and closing doors and drawers to ensure smooth operation without interference. Confirm that all electrical and plumbing lines remain undisturbed behind the wall and inside cabinets. Finally, verify weight distribution remains balanced, particularly for tall or heavy wall cabinets. Keeping a habit of periodic checks after heavy use helps prevent future sagging and alignment drift.

The final step is documenting your installation plan for future maintenance or remodels. Note the rail type, screw lengths, and the exact stud spacing used for future reference. This approach makes it easier to replace components if you move or modify the kitchen layout later.

Common mistakes to avoid and quick corrections

Common mistakes include underestimating weight, using undersized screws, skipping studs, and neglecting leveling before fastening. The simplest corrections involve rechecking stud placement, upgrading to longer screws, and adjusting shims to cure any tilt. Always test the weight tolerance of each cabinet before declaring the installation complete. If you see gaps at seams after tightening, reconsider the alignment strategy and adjust rail or cleat position accordingly. The goal is a robust installation that remains visually consistent even after years of use.

Authority sources and further reading

To support this guide, consult established resources that cover cabinet installation, woodworking practices, and safe tool use. The Hardware recommends cross-referencing installation guidelines published by credible sources and manufacturers. For safety and technique, refer to government and educational resources on power tool operation and construction best practices. In addition, consult industry publications for best practices on cabinetry installation that align with your local building codes.

Real-world maintenance and long-term care

Once cabinets are installed, perform periodic checks for loose fasteners, alignment drift, and door alignment. Keep screws tight but avoid over-tightening which can strip holes or warp panels. Clean hardware with a soft, dry cloth and avoid harsh solvents that can degrade finishes. If you move cabinets or remodel, document the mounting method and hardware used so future work can be performed with the same approach. Practicing regular maintenance helps ensure your cabinet system stays strong and visually appealing for years.
