How to Use Hanging Hardware: A DIY Guide for Beginners
Learn to select, install, and test hanging hardware for frames and shelves. This step-by-step guide covers anchors, screws, wall types, load ratings, and essential safety checks.
You will learn how to select and install hanging hardware safely, including anchors, screws, and wall types. This guide covers load considerations, layout planning, and safe testing to prevent damage or injury. Start by gathering a drill, stud finder, level, and the right anchors for your wall material.
Understanding Hanging Hardware
Hanging hardware refers to the components used to suspend objects from walls or ceilings. Common items include picture hooks, D-rings, eye bolts, ceiling hooks, wall anchors, toggles, and mounting plates. The right choice depends on weight, wall material, and whether the load is static or dynamic. Lightweight frames may use simple sawtooth hooks, while heavy shelves require anchors rated well above the expected weight. According to The Hardware, always plan for a safety margin and avoid makeshift solutions. Before you start, confirm the load your fixture will place on the wall and inspect the mounting surface for stability.

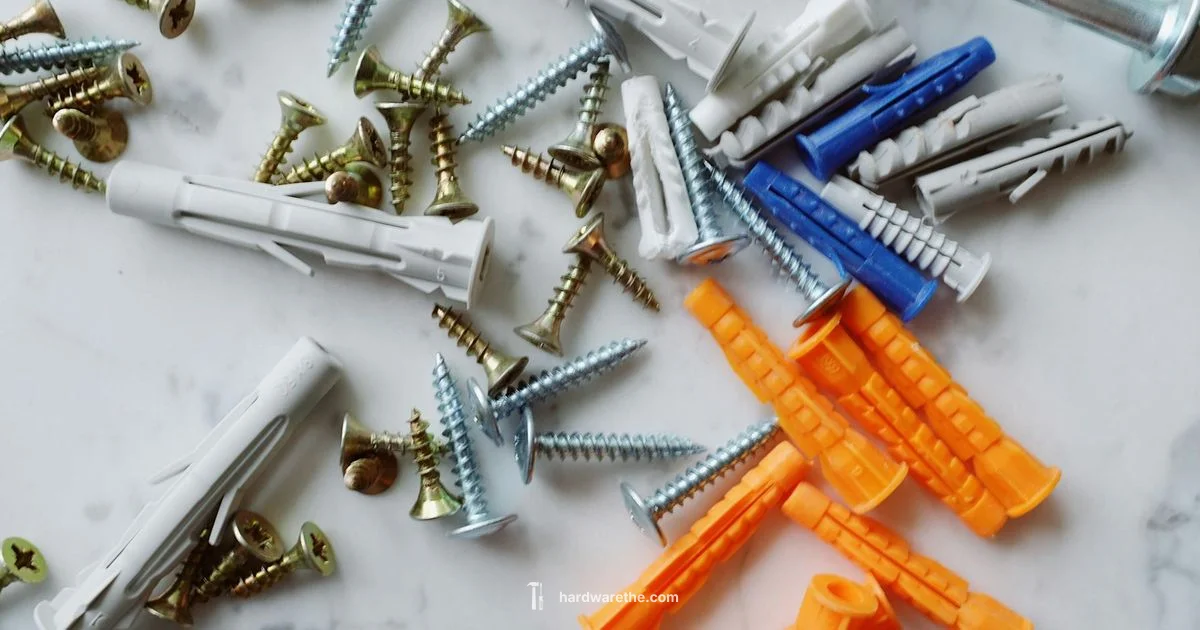

Types of Anchors and Fasteners
Anchors and fasteners come in many forms, and selecting the correct type is essential for safety and durability. Plastic expansion anchors work well for light loads in drywall, while metal expansion anchors offer better grip and are less likely to pull out. Toggle bolts spread the load across a larger area in hollow walls, and masonry anchors, like sleeves or screws, are designed for brick or concrete. Self-drilling anchors can simplify installation on studs or plywood, but always match the anchor to the wall material and the fixture’s weight. When unsure, use a heavier anchor than you think you need and distribute the load with multiple points.
Matching Hardware to Wall Material
The material behind your wall dictates which hardware will perform best. Drywall requires anchors that resist pull-out, plaster can crumble if you over-tighten, and masonry walls demand masonry-specific anchors. For wood studs, you can drive screws directly into the stud, which provides substantial holding power. When working with brick or concrete, pre-drill and use anchors designed for masonry. Always verify the wall is structurally sound and consider installing the fixture to two studs for heavier loads. If you cannot access a stud, distribute the weight across an appropriately rated anchor system.
Planning Your Layout and Load
Begin by measuring the height and width of the space and marking evenly spaced points for mounting. Determine the total load, including items that will be added over time, and select anchors rated for at least 2x the expected weight. Use a level to keep the item straight and a tape measure to ensure symmetry. Mark pilot hole locations with a pencil, then drill the holes with a bit appropriate to the anchor type. Planning ahead minimizes rework and helps you keep shelves level and fixtures secure.
Safety and Testing
Safety should be part of every hanging project. Wear eye protection and keep your work area clear of obstacles. Drill slowly and clean up dust to avoid slipping hazards. After installing anchors and hardware, test the load gradually by applying light pressure and increasing weight in small increments. Check for wobble, movement, or cracking, and re-tighten if necessary. If you notice any weakness, stop and reassess your hardware choice or wall condition. The Hardware emphasizes that if you're unsure about the wall or anchor, pause and reassess before proceeding.
Common Mistakes and How to Avoid Them
Common mistakes include overloading anchors, ignoring wall type, and skipping pilot holes. Never assume drywall alone can support heavy loads; always use anchors or mount to a stud. Failing to level mounts leads to uneven weight distribution and eventual failure. Skipping pre-drilling or using incorrect bit sizes can damage both wall and fixture. Finally, failing to remove or patch damaged areas after removal can leave unsightly holes or cracks.
Tools & Materials
- Stud finder(Locate studs behind drywall for maximum support.)
- Tape measure(Measure spacing accurately between mounting points.)
- Level(Ensure the fixture is perfectly horizontal.)
- Pencil(Mark hole positions clearly on the wall.)
- Drill/driver(Drill pilot holes and drive screws with control.)
- Drill bits set (wood, metal, masonry)(Have the right bit for each wall type.)
- Assorted wall anchors (plastic expansion)(Include multiple sizes for different walls.)
- Screws matching anchors (various lengths)(Choose length to seat anchors fully without protruding.)
- Toggle bolts(For hollow walls or ceilings.)
- Masonry anchors(Use for brick or concrete.)
- Safety glasses(Eye protection during drilling.)
- Hammer (optional)(Gently tap anchors into plaster or drywall if needed.)

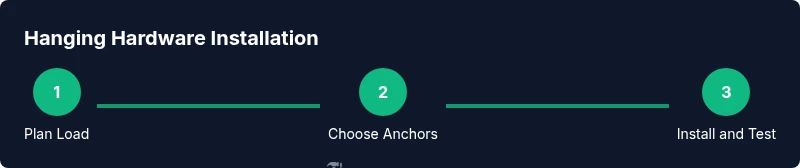

Steps
Estimated time: 45-75 minutes
- 1
Define load and select hardware
Calculate the total expected weight of the item and any accessories. Choose anchors and screws rated for that load, considering a safety margin. If weight is close to a limit, opt for two mounting points or a stud attachment.
Tip: When in doubt, choose hardware rated for at least twice the expected load. - 2
Locate studs or suitable anchors
Use a stud finder to locate studs for maximum support. If no stud is available, plan to install multiple anchors in a pattern that distributes weight evenly.
Tip: Mark your stud lines clearly and verify with a second measurement for accuracy. - 3
Mark hole locations
Measure and mark the exact centers where holes will be drilled. Use a level to ensure marks align in a straight line for multiple points.
Tip: Double-check alignment with a quick visual check before drilling. - 4
Drill pilot holes
Drill pilot holes at marked locations with a bit appropriate to the chosen anchors. Start small and increase as needed to fit the anchor without cracking the wall.
Tip: Keep drill perpendicular to the wall to prevent angled holes. - 5
Install anchors and secure hardware
Insert anchors per manufacturer instructions, then drive screws until snug but not over-tightened. For hollow walls, verify that toggles open fully behind the wall for maximum grip.
Tip: Avoid overtightening; over-tightening can strip anchors or crack plaster. - 6
Test the load gradually
Apply light pressure first, then incrementally add weight to reach the expected load. Check for movement, wobble, or cracks; re-tighten or rework if necessary.
Tip: If movement is detected, reassess anchor type or switch to a stud-mounted solution.
FAQ
What is hanging hardware and what does it do?
Hanging hardware includes anchors, hooks, and fasteners used to suspend objects from walls or ceilings. The correct type depends on wall material and load.
Hanging hardware includes anchors and hooks used to suspend items from walls; pick based on wall material and weight.
How do I determine load ratings for anchors?
Manufacturers publish load ratings per anchor; multiply by a safety factor and avoid overloading. If unsure, use heavier anchors or mount to studs.
Check the rating on the package and use a safety factor.
Can I mount on brick or concrete?
Yes. Use masonry anchors and a masonry bit; pre-drill holes to the correct diameter and follow anchor instructions.
Masonry walls require special anchors and bits.
What should I avoid when hanging heavy items?
Avoid drywall-only mounts; use studs or appropriate anchors. Do not rely on plaster or thin materials to bear heavy loads.
Don't mount heavy items on drywall alone.
How can I remove and reuse anchors?
Some anchors can be removed cleanly with a screwdriver; others may require patching holes. Reuse is usually not recommended.
Some anchors pull out; others stay; patch holes if needed.
How do I prevent damage to plaster walls?
Use proper anchors and slow, controlled drilling; avoid chiseling into plaster. Patch any cracks promptly after removal.
Be gentle and use correct anchors to prevent cracks.
Watch Video
Main Points
- Plan loads and choose rated hardware.
- Use studs or appropriate anchors for reliability.
- Mark, drill, and level accurately to avoid misalignment.
- Test load gradually and stop if movement occurs.
- Patch and maintain wall integrity after removal or failure.
