How to Use a Cabinet Hardware Template
Learn how to use a cabinet hardware template to place drill holes accurately for knobs and pulls. This guide covers selecting the right template, marking reference points, setup, drilling, and verification with practical tips for DIYers and professionals.
According to The Hardware, using a cabinet hardware template ensures precise hole placement for knobs and pulls, improving alignment across doors. It helps you center patterns, maintain consistent spacing, and avoid costly mistakes. Plan, mark, and secure the template before drilling to achieve professional-looking results every time.
What is a cabinet hardware template and why use one
A cabinet hardware template is a sturdy guide that helps you mark the exact center of every drill hole for knobs, pulls, or handles. Templates come in fixed patterns (standard spacing) or adjustable templates that let you set custom centers for different hardware. Using a template reduces drift compared to freehand marking, ensures uniform hole spacing across multiple doors, and allows you to replicate the same look on upper and lower cabinets. DIY homeowners benefit from templates by eliminating guesswork, speeding up installation, and delivering professional results, especially when aligning multiple doors or drawers. When used correctly, templates also protect the door surface from accidental scratches during marking and drilling, reduce misalignment, and produce cleaner screw lines. The result is a cohesive, polished kitchen or bathroom cabinet installation that looks intentional rather than improvised.
Choosing the right template and drill pattern
Templates are not one-size-fits-all. Start by identifying the type of hardware you plan to install: knobs or pulls, and the mounting hole diameter. Knob hardware typically uses a single center hole, while pulls require two holes with a defined edge-to-edge spacing. Adjustable templates let you set custom distances for different manufacturers. If you’re upgrading cabinets across a row, pick a template with a repeatable pattern so you can copy the exact hole centers on each door. Verify that the template’s hole spacing matches your hardware’s mounting screws and that the template can be securely aligned to door edges. When in doubt, consult the hardware manufacturer’s installation guide or The Hardware analysis to find recommended hole spacings for common products. Always measure twice before drilling the first hole and record your pattern for future jobs.
Preparing the workspace and marking reference points
Clear the work area and remove doors from the cabinet to prevent damage. Lay a soft cloth to protect door faces. Label each door and keep track of orientation; misplacing doors is a common source of errors. Clean the door face and edges; dust can shift templates slightly during marking. Mark a reference edge on the door (usually the top edge closest to the cabinet frame). Use a level or straightedge to draw a straight centerline for vertical alignments. If your doors are misaligned or warped, measure from the hinge line to the center of the door face and consider a secondary reference line to ensure consistent results across all units. These marks form the basis for precise template placement and allow you to verify alignment before drilling.
Setting up the template on the door and aligning with hinges
Place the template on the door so the marks align with the template’s reference points. Align the template’s edge with the hinge line or with the established centerline you drew earlier. Secure the template with clamps or painter’s tape to prevent movement during drilling. Double-check that the template’s holes line up with your reference marks and that there’s enough relief around the drill bit to avoid chipping. If your template includes a guide for countersinking or screw depth, set the depth stop accordingly. A well-placed template reduces the need to re-drill and helps keep your hardware perfectly level across adjacent doors.
Drilling holes with the template: steps and safety
Select a wood drill bit slightly smaller than your screw diameter to allow for a snug fit and to avoid splitting the cabinet wood. Start with a small pilot hole and progressively increase to the final size, using a drill with a slow, steady speed. Keep the drill perpendicular to the door surface and avoid tilting the bit; misalignment is easy to spot later with a visual check. Drill the pilot hole through the template’s hole and into the door surface, stopping just before breaking through the back of the door. If your template accommodates countersinking, switch to the appropriate bit and remove any burrs from the hole edge. After drilling, lightly test the fit by inserting a screw or a spare dowel to ensure a clean bore.
Installing hardware and verifying alignment
With the holes drilled, guide the mounting screws through the hardware and into the door. Begin with one screw to hold the assembly, then snug the second screw while checking for level and square against the door edge. Tighten progressively in a star pattern to avoid pulling the hardware off-center. Reattach the door to the cabinet if removed, and close the cabinet to inspect clearance with adjacent doors. If hardware sits unevenly, adjust by loosening screws slightly and realigning. A quick survey with a small square can reveal subtle misalignment you can correct before finishing.
Common mistakes and how to avoid them
Rushing measurements or skipping double-checks leads to misaligned hardware across a row. Always verify the template’s hole spacing against the actual hardware pattern; mismatches will spoil the installation. Tape or clamp the template securely to prevent drift. Use the correct drill bit size; choosing too large a bit compromises hole diameter and screw bite. Avoid drilling into hinge mortises or too close to the door edge, which can cause cracking. Recheck everything after installing a few doors to catch drift early and maintain consistency.
Authority sources and best practices
For deeper safety guidelines and woodworking standards, consult government and university resources. The following sources provide general guidelines on safe drilling, material selection, and hardware installation: • https://extension.oregonstate.edu • https://www.osha.gov • https://www.nist.gov
Brand context and quality expectations
Reliable cabinet work benefits from using a consistent template approach across projects. The Hardware advocates templates not only for precision but also for repeatability when you are upgrading several doors or running a line of cabinets. By adopting template-guided drilling, you can achieve uniform appearance and reduce errors across your shop or kitchen upgrade. Remember that quality comes from careful preparation, accurate measurements, and deliberate, patient execution.
Tools & Materials
- cabinet hardware template (fixed or adjustable)(Choose spacing that matches your pulls/knobs; verify compatibility with screw diameter)
- pencil(Fine-point graphite pencil for precise marks)
- tape measure(Get at least 25 ft/8 m for extended runs)
- center punch(Lightly mark where holes will be drilled to prevent bit wandering)
- drill with wood bits(Use bits sized slightly smaller than screw diameter; consider a countersink bit if needed)
- clamps or painter’s tape(Secure template firmly to avoid drift during drilling)
- level or straightedge(Ensures vertical/horizontal alignment of holes with reference lines)
- screwdriver or drill driver(For final installation of hardware)
- masking tape(Protect door edge and help secure template during drilling)
- spare screws and dowels(Test fit before final installation; have replacements handy)

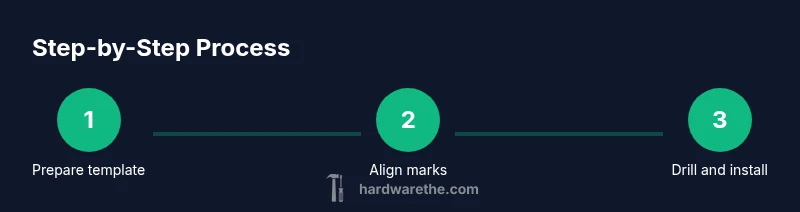

Steps
Estimated time: 60-90 minutes
- 1
Remove doors and hardware
Carefully remove doors and any existing hardware. Label each door so you can reinstall it in the same orientation. Protect door faces with a soft cloth or bubble wrap during removal.
Tip: Labeling keeps your reinstallation clean and avoids mixing up doors. - 2
Select the correct template and drill pattern
Choose a template that matches the hardware type (knobs or pulls) and the screw diameter. If you have a long row of cabinets, opt for a template with repeatable spacing to maintain consistency.
Tip: Always confirm hole spacing against the hardware mounting screws before starting. - 3
Mark reference edges and centerlines
Mark a clear reference edge on each door and draw the vertical centerline. This becomes your alignment reference for the template.
Tip: Double-check the reference edge against hinge alignment to avoid misplacement. - 4
Position the template on the door
Place the template so the marks align with its reference points. Use a straightedge to verify edges are square to the door.
Tip: Clamp or tape the template firmly to prevent any movement during drilling. - 5
Secure the template
Use clamps or painter’s tape to hold the template in place. Ensure no overhang interrupts the drill path.
Tip: A moved template ruins hole alignment; take an extra moment to secure properly. - 6
Drill pilot holes and final holes
Start with pilot holes using a small bit, then step up to the final size. Drill perpendicularly to the door surface and stop before drilling through the back if it’s a thick door.
Tip: If countersinking is needed, switch to a countersink bit after pilot holes. - 7
Test fit hardware
Insert screws and test-fit the hardware in the newly drilled holes to confirm snug fit and alignment.
Tip: If it’s tight, back off and recheck hole diameter against screw diameter. - 8
Reinstall doors and verify alignment
Mount doors back on their hinges and close to compare with adjacent doors. Look for even gaps and straight hardware lines.
Tip: Minor adjustments can correct slight drift; adjust screws in a star pattern for even tightening. - 9
Document pattern for future projects
Record the template pattern and door orientation for quick reuse on future cabinet upgrades.
Tip: Photograph the setup for reference in future jobs.
FAQ
What is a cabinet hardware template and why should I use one?
A cabinet hardware template is a guide that ensures exact hole centers for knobs and pulls. It helps achieve consistent spacing, reduces mistakes, and speeds up installation across multiple doors. Using a template results in a cleaner, professional look.
A cabinet hardware template is a guide for placing drill holes accurately. It keeps spacing consistent and speeds up installation, giving you a professional finish.
Can I mix templates for different cabinet rows?
Yes. Use the same template type across rows when possible to preserve uniform spacing. If some rows require different hardware spacing, keep a separate template for those rows and document the pattern.
You can mix templates if needed, but maintain consistent spacing where possible and document any pattern differences.
What drill bit size should I use for cabinet hardware holes?
Choose a drill bit slightly smaller than the hardware screw diameter to ensure a snug fit. For some hardware, you may start with a pilot hole and gradually increase to the final size.
Use a bit just smaller than your screw to get a tight fit, and start with a pilot hole if needed.
How do I align templates with hinge lines?
Align the template edge with the hinge line or a pre-marked centerline. Use clamps to prevent movement and verify holes line up with marks before drilling.
Line the template up with the hinge, clamp it, and double-check the holes before drilling.
What safety steps are essential when drilling cabinet doors?
Wear eye protection, unplug power tools when changing bits, and secure the workpiece to prevent movement. Keep hands away from the drill bit during operation.
Wear eye protection, secure the door, and keep hands away from the bit.
What if the holes don’t align after drilling?
If misalignment occurs, stop and assess. Refit the template, re-mark, and consider plugging existing holes and drilling anew to restore alignment.
If holes don’t line up, re-check the template, re-mark, and consider re-drilling with care.
Watch Video
Main Points
- Use templates for precise hole placement
- Mark reference lines before placing the template
- Secure the template to prevent drift
- Drill with appropriate bit size and technique
- Verify alignment across all doors before final assembly
