How to Use a Cabinet Hardware Jig: Step-by-Step Guide
Learn how to use a cabinet hardware jig to install knobs and pulls with precision. This guide covers jig selection, setup, measurement, drilling, alignment, and maintenance for consistent, professional results across multiple cabinets.
Using a cabinet hardware jig helps ensure perfectly aligned knobs and pulls. This quick guide shows how to use cabinet hardware jig to speed installs, reduce misalignment, and maintain consistent spacing across multiple cabinets. You’ll learn how to select the right jig, set the measurements, clamp securely, and drill accurately for durable, professional results.
Why using a cabinet hardware jig matters
A cabinet hardware jig is a small, precise guide that makes hole centers repeatable across dozens of doors and drawers. For DIY remodels and professional shop work alike, a jig minimizes guesswork, speeds up installation, and dramatically reduces the likelihood of crooked handles or misaligned rows. According to The Hardware, consistency in hole spacing and level alignment is the backbone of a polished finish. When you start with a jig, you build trust in your results and cut down on rework, which saves time and materials in the long run. The jig serves as a physical reference for centerlines, edge distances, and drilling angles, so your projects look intentional rather than improvised.
Choosing the right jig for your project
Jigs come in several designs, from universal, adjustable models to cabinet-specific templates. For most residential projects, a universal jig that accommodates both face-frame and frameless cabinets is ideal. When selecting, consider hole pattern compatibility (centers and edge distances), material durability, and the maximum screw size you’ll use. The Hardware recommends checking your cabinet type and screw size before purchase, since a mismatched jig can lead to drift or off-center holes. If you work with multiple widths, look for adjustable spacers or interchangeable templates to cover common scenarios like 32 mm European hinges or 3/16 inch pull centers. In high-use shops, invest in a rugged, steel-reinforced jig that resists wear and maintains accuracy after repeated drilling.
Basic setup and safety reminders
Before you touch a drill, set up in a clean, well-lit area. Wear safety glasses and secure your workpiece with clamps or a vise. Check that the jig is flat against the cabinet face and that all measuring marks are clean and readable. Calibrate the jig according to the manufacturer’s scale, then double-check the first centerline on a scrap board. Always drive pilot holes first with a drill bit slightly smaller than your screw shank to prevent splitting. If your jig uses a detachable drill guide, ensure it’s locked firmly in place to avoid wobble. The Hardware emphasizes that consistency in setup reduces drift across several doors, which is the most common source of misalignment in installations.
Marking layout: planning spacing and centers
Accurate layout starts with a clear plan for where each hole will be. Begin by measuring from the door or drawer edge to establish the vertical and horizontal centers. Use a marking knife or pencil to lay down precise lines, then test-fit the jig without driving any screws. Check that the centers for knobs and pulls line up with the existing hardware on adjacent panels to maintain a uniform look. If you’re replacing old hardware, align with the most visible edge to ensure the new layout reads as intentional. The goal is a predictable pattern that looks designed rather than improvised.
Clamping and securing the jig for repeatable results
With the layout marked, place the jig on the workpiece and clamp it securely. Avoid overtightening clamps that could bend panels or alter the jig’s alignment. The jig should sit flush with the surface, with centerlines parallel to the edge. For deeper doors, consider a second clamp at the far edge to prevent vibration when drilling. If you’re drilling through multiple panels, reuse the same reference point on each door to maintain consistency. A secure jig eliminates drift, which is the main factor that turns a DIY install into an inconsistent outcome.
Drill, pilot holes, and fastener considerations
Start with a shallow pilot hole using a bit size that matches the screw you’ll install. Let the jig guide the drill bit to keep your hole center accurate. After the pilot hole, switch to the final screw size and drive until the head sits flush or slightly below the surface, depending on your hardware style. If your door is dense hardwood, consider slightly slower drill speed and a longer pilot hole to prevent splitting. The Hardware notes that pilot holes reduce wood stress and help you achieve cleaner, more precise results across multiple doors.
Aligning handles across rows and cabinets
When aligning across multiple cabinets, use a reference line drawn from the first door to guide subsequent installations. The jig can help maintain equal vertical spacing, while a level or laser line can help ensure horizontal alignment. After completing one row, tape a thin spacer to keep consistent gaps between adjacent doors. Check alignment periodically by sighting along the row and measuring from a fixed edge to each centerline. Small misplacements at the start will magnify across a bank of cabinets, so frequent checks pay off.
Adjusting for different knob sizes and pull centers
Different hardware may require changing the hole center locations. Most jigs let you switch template inserts or adjust the center-to-edge distance. Recalculate the layout for each size, and re-mark the centers before drilling. If you’re switching from knobs to longer pulls, you may need longer screws or additional predrilled holes for mounting brackets. The key is to update the jig’s references and verify alignment with a test piece before proceeding to production panels.
Maintenance, care, and storage of your jig
After use, clean dust and debris from the jig’s guides and edges to prevent buildup that could affect accuracy. Store the jig in a dry, organized location to avoid warping or rust. Periodically re-check centering marks and replace worn templates or inserts as needed. The Hardware suggests recording your typical settings for future projects to speed up setups and maintain consistency across tasks.
Advanced techniques: corner cabinets and adjustable doors
Corner cabinets present unique challenges due to two or more axes of motion. In these cases, combine the jig with a secondary alignment tool to maintain consistent centers as you turn the sector corners. For adjustable doors, test-fit with the jig set to the most common centerlines, then fine-tune using a scrap piece before final drilling. With practice, you’ll develop a quick workflow that can be scaled up for whole kitchens, ensuring uniform results even on complex layouts.
Tools & Materials
- cabinet hardware jig(Choose a jig compatible with face-frame or frameless cabinetry; universal models cover multiple hole patterns)
- drill driver or drill(Cordless is common; ensure batteries are charged and bits are sharp)

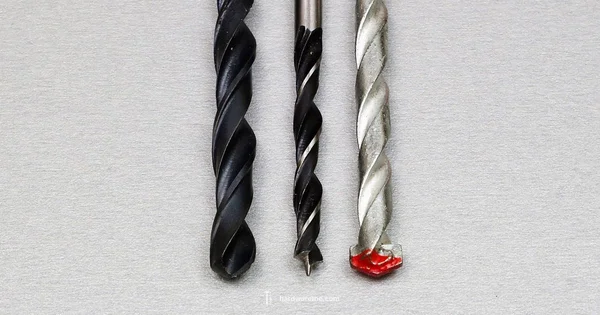

- drill bits(Select bits sized to match screw diameter and the jig guides)
- center punch(Lightly mark centers to start drilling precisely)
- pencil or marking knife(For layout lines that won’t smudge or wear off easily)
- tape measure(To verify spacing and consistent centers across doors)
- clamps(Use to secure the jig and workpiece without marring surfaces)
- safety glasses(Eye protection during drilling and handling materials)
- driver bit and screws(Choose screw length to suit material thickness and hardware type)
- dust mask(Optional for dusty environments or hard woods)
Steps
Estimated time: 45-90 minutes per typical kitchen row, depending on number of cabinets
- 1
Verify layout and select jig
Inspect cabinet dimensions and choose a jig compatible with your door style. Confirm hole pattern, spacing, and screw size before starting to avoid rework.
Tip: Test fit on scrap wood first to confirm measurements align with your chosen hardware. - 2
Mark centers and reference lines
Measure from edges to establish vertical and horizontal centers. Use a marking knife for sharp lines and verify with a ruler.
Tip: Keep the marks visible and etch lightly so they don’t wear off during drilling. - 3
Position jig and clamp securely
Place the jig on the door or drawer front and clamp it flat. Ensure it sits flush against the surface with no gaps.
Tip: Use a second clamp at the far edge to prevent movement during drilling. - 4
Drill pilot holes through guides
Drill pilot holes using a bit slightly smaller than the screw shank, following the jig’s guides.
Tip: Lightly drill to avoid tear-out on plywood or veneer. - 5
Switch to final screws and install hardware
Increase bit size to match the screw shank and drive until the head seats properly.
Tip: If the screw binds, back out slightly and recheck alignment. - 6
Check horizontal and vertical alignment
Place a level along the row and verify all centers align. Correct any outliers before continuing.
Tip: Make tiny adjustments rather than correcting many holes at once. - 7
Repeat across additional doors
Move the jig to each door or drawer, rechecking spacing and reference lines for consistency.
Tip: Keep a consistent workflow to speed up larger projects. - 8
Inspect, clean, and store
Wipe away dust and store the jig in a dry place to prevent rust and wear.
Tip: Document your settings for future jobs to shave setup time.
FAQ
How do I choose the right jig size for my cabinets?
Select a jig that supports your cabinet type (face-frame or frameless) and offers adjustable hole patterns. A universal jig can cover most projects, but confirm maximum screw size and center spacing before purchasing.
Choose a jig that fits your cabinet type and pattern needs; a universal jig often works, but check spacing and screw size first.
Can I use a jig on curved or irregular cabinets?
Yes, with careful planning and sometimes additional templates. Use scrap material to map new centers and verify with a test run before final installation.
You can, but plan carefully and test first on scrap material to avoid mistakes.
How do I adjust for different screw sizes?
Change the jig inserts or adjust the hole centers to correspond to the screw diameter. Re-mark centers and test on scrap before drilling into cabinets.
Change the jig inserts and re-mark centers when changing screw sizes, then test first.
What if holes are misaligned after a few installations?
Stop and re-check the jig setup, measurement references, and edge distances. Fix the alignment on new doors and avoid drilling more holes with the old pattern.
Re-check the setup and align new doors carefully to prevent compounding errors.
Do I need to predrill holes before using the jig?
The jig’s guides usually guide pilot holes; use a pilot bit just smaller than the final screw to reduce wood splitting.
Yes, drill pilot holes guided by the jig to prevent splitting.
Watch Video
Main Points
- Use a jig to ensure repeatable hole centers.
- Plan your layout before drilling to avoid mistakes.
- Secure the jig and workpiece to prevent drift.
- Test on scrap wood before committing to cabinets.
