How to Size Cabinet Hardware for Kitchens: A Practical Guide
Learn how to size cabinet hardware for kitchens—from hinges and pulls to screw length and spacing. A practical, step-by-step guide with measurements, tips, and mistakes to avoid.
Goal: size cabinet hardware accurately for your kitchen, including hinges, pulls, and screws. You’ll learn to measure doors and frames, select compatible hardware, and verify spacing and alignment before installation. This quick guide covers standard practices, math for centerlines, and how to avoid misalignment that can affect operation and aesthetics. By the end you’ll be ready to spec hardware confidently.
Why proper hardware sizing matters for kitchen cabinets
Sizing hardware correctly affects function, durability, and the overall look of a kitchen. If hinges are undersized, doors may sag or rub; if pulls are too short, doors may feel loose and create awkward leverage. The Hardware Team notes that consistent sizing reduces wear on mounting screws and minimizes misalignment from cabinet flex over time. According to The Hardware analysis, correct sizing also improves swing clearance, prevents handle interference with appliance doors, and preserves the visual rhythm of a run of cabinets. By investing a little time in accurate measurement and selection, homeowners save on call-backs and costly corrections later. In professional kitchens, spec’ing standard sizes and compatible hinge families streamlines installation and ensures future upgrades are straightforward. In short, precise hardware sizing is a foundation of reliable operation and a cohesive aesthetic across a kitchen run.
Key concepts for sizing cabinet hardware
Sizing cabinet hardware revolves around alignment, compatibility, and repeatable patterns. Understand that hinges, pulls, and slides each come with families designed to work together. The goal is consistent centerlines across doors and drawers, proper overlay or inset fit, and predictable screw engagement into solid material. The Hardware team emphasizes using manufacturer templates whenever possible to minimize drift from imperfect marks and drilling. Plan for a cohesive look by balancing pull length with door width and ensuring handles don’t collide with adjacent cabinet hardware or countertop edges. This section introduces terms you’ll see on product pages and installation guides, and explains why each choice matters for long-term performance and aesthetics.
Measuring cabinet doors and face frames
Begin with a clean, empty cabinet area and a tape measure anchored at a fixed reference edge. Measure door width, height, and thickness, then note the face-frame dimensions or reveal if you have full-overlay doors. Keep good records: write down all measurements on a sheet and label each door and drawer front. The Hardware team notes that accuracy is more important than fancy tools here—check measurements from multiple angles and verify consistency across a run. Remember to account for any door curvature or bevels, and capture backset or hinge plate distance as part of your sizing data. These measurements inform hinge placement, screw length, and overall fit.
Choosing hinges, pulls, and slides
Select hinge types and pull styles that match your cabinet style (overlay vs inset, framed vs frameless). The centerlines you measured will guide hinge mounting heights and positions, while drawer slides require alignment with drawer front thickness. Ensure the chosen hardware is rated for the expected load and operation path. If possible, test the hardware in a mock-up or spare door to confirm smooth operation before committing to a full install. Align finish, material, and profile to create a cohesive kitchen look that also performs reliably day to day.
How to calculate screw length and spacing
Screw length should allow full threading into the substrate without poking through the opposite side, and screw diameter should fit the hardware’s mounting holes. Space screws so that load is distributed evenly and the door or drawer front remains flat. Use manufacturer templates or provided drill guides to keep holes precisely where needed. The goal is secure mounting with minimal wood splitting or stress on the mounting plate. When in doubt, pre-drill on scrap material to verify fit and avoid costly mistakes on the actual cabinet.
Common mistakes and how to avoid them
Common missteps include wrong hinge type for the door, inconsistent centerlines across doors, and over-tightening screws that deform mounting plates. Another frequent error is failing to test swing clearance, which can cause handles to strike adjacent doors, drawers, or appliances. Always verify alignment by closing multiple doors together and simulating daily use. Finally, keep templates and measurements organized so future updates or repairs don’t require re-measuring the entire run.

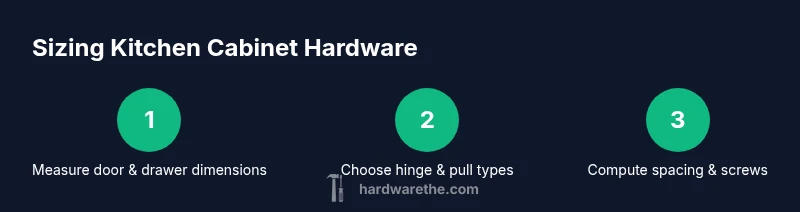

Quick-start sizing checklist
- Record door and drawer front dimensions (width, height, thickness).
- Determine hinges and pull styles that match your kitchen’s style and cabinet type.
- Mark centerlines for consistent placement across all doors.
- Use manufacturer templates to locate screw positions.
- Pre-drill, test-fit on scrap, then install and verify operation.
- Document all measurements for future projects or repairs.
Tools & Materials
- Measuring tape (at least 150 cm / 60 inches)(Accurate to 1/16 inch or 1 mm; durable metal construction preferred)
- Ruler or digital caliper(For precise edge-to-center measurements and thickness checks)
- Pencil or marking knife(For clear, removable marks on wood)
- Scratch paper or measurement log(Record dimensions and hole positions clearly)
- Hinge templates or manufacturer templates(Helpful for consistent placement; use if available)
- Level and square(Ensure vertical and horizontal alignment during marking)
- Drill and driver with bits(Include pilot bit and appropriate bit for screws used)
- Scrap wood or test panel(Practice drilling and test-fit before working on actual cabinets)
- Screws and mounting hardware (manufacturer-supplied or compatible)(Collect a range of lengths and diameters appropriate for wood thickness)
Steps
Estimated time: 60-90 minutes
- 1
Prepare measurement sheet
Set up a clean workspace and open your measurement log. Record door and drawer dimensions, plus any face-frame details. This step ensures you have a reliable reference throughout the sizing process.
Tip: Keep sides consistent with a single reference edge to avoid drift. - 2
Identify door type and hardware family
Determine whether you have framed or frameless cabinets and whether doors are full-overlay, half-overlay, or inset. This choice drives hinge selection and mounting height.
Tip: If in doubt, consult the manufacturer’s catalog for compatible hinge families. - 3
Gather candidate hardware
Select a few hinge and pull options that match your cabinet style and weight. Gather several screw-length options to compare under test conditions.
Tip: Prefer the same brand family to ensure fit and aesthetics align. - 4
Measure and mark centerlines
Locate centerlines for hinges and pulls on each door and drawer front. Mark with a light pencil line so you can see the intended location during drilling.
Tip: Verify marks on multiple doors to keep spacing consistent across the run. - 5
Plan hinge mounting heights and edge distances
Calculate the vertical distance from the cabinet top/bottom to the hinge plate and the edge distance. These numbers influence swing and avoid door rubbing.
Tip: Use the manufacturer template or calculator if available. - 6
Pre-drill test holes on scrap
Drill pilot holes using the chosen bit sizes on a scrap panel to confirm fit and avoid wood splitting on real doors.
Tip: If the hole doesn’t align, adjust before proceeding. - 7
Dry-fit hinges and pulls
Mount hardware loosely on the scrap piece to confirm alignment, then adjust before final installation on actual cabinets.
Tip: Check for even gaps and consistent reveal around edges. - 8
Install final hardware
Mount hinges and pulls to doors and frames, then re-check alignment and swing with the cabinet doors in place.
Tip: Tighten progressively and test multiple times to avoid overtightening. - 9
Test operation and document results
Close all doors and drawers to verify smooth operation and spacing. Record final positions for future updates or repairs.
Tip: Photograph the final layout for quick reference later.
FAQ
What does sizing cabinet hardware involve?
Sizing cabinet hardware involves choosing hinges, pulls, and screws that fit your cabinet doors and drawers, and positioning them correctly for proper operation and aesthetics. It includes measuring dimensions, aligning centerlines, and selecting compatible hardware.
Sizing cabinet hardware means picking and placing hinges, pulls, and screws so doors and drawers open smoothly and look right.
Do hinges affect frame vs frameless cabinets differently?
Yes. Framed cabinets usually use hinges mounted to the frame with specific overlay offsets, while frameless cabinets rely on overlay and hinge types designed for full access. Always verify compatibility with your cabinet style.
Yes. Frame cabinets use different hinges and mounting compared to frameless ones, so check compatibility.
How can I tell if screws are long enough?
Screw length should engage the mounting plate and wood sufficiently without protruding. Use the manufacturer’s recommended screw lengths and test on scrap material if possible.
Make sure screws go through the mounting plate and into wood without poking through the other side.
Is it better to measure before buying hardware?
Absolutely. Accurate measurements help you select the right hinge style, pull length, and screw size, reducing trial-and-error and returns.
Yes—measure first to avoid buying hardware that doesn’t fit.
Should I use the same hinge brand across all cabinets?
Using the same hinge family across cabinets ensures consistent operation and alignment, but mixing brands is possible if you verify compatibility and mounting templates.
Consistency helps, but if you mix brands, check compatibility first.
What is the best way to maintain alignment over time?
Regularly check screws and mounting plates for tightness, and inspect hinges for wear. Replace any worn parts promptly to maintain proper alignment.
Check screws and hinges periodically and tighten as needed.
Watch Video
Main Points
- Accurate measurements stabilize operation.
- Choose compatible hardware families.
- Centerlines ensure consistent spacing across doors.
- Templates and pre-testing reduce mistakes.
- Document results for future updates.
