How to Make Hardware Cloth Tight: A DIY Guide
Learn practical, step-by-step techniques to tighten hardware cloth for fencing, cages, and enclosures. From frame choices to edge anchoring and maintenance, discover reliable tensioning methods with safe, long-lasting results.
Goal: tighten hardware cloth used in fencing, animal pens, or ventilation enclosures. This quick answer outlines the most reliable tensioning methods, frame types, and safety considerations. You’ll learn when to stretch, clamp, or weave, plus practical tips to prevent sag with turnbuckles, hog rings, stainless staples, and proper edge support.
Understanding hardware cloth tension and why sag happens
Sagging occurs when mesh is not adequately supported along its span or when edge fasteners allow movement. Hardware cloth, typically galvanized steel or stainless steel, has some elasticity, especially in larger openings. As load, wind, or weight from gathered material occurs, the cloth can loosen or warp. The key is to install the cloth with proper initial tension and maintain even support along every edge. Rust resistance matters, especially for outdoor installations; choose corrosion-resistant options for longevity. For DIY projects, plan for mid-span support at regular intervals: usually every 2 to 4 feet depending on mesh size, frame rigidity, and cloth gauge. In addition to tension, edge anchoring is critical: edges must be fixed tightly to prevent creep. Always verify the cloth lies flat with no buckling and that corners stay square after initial tension is applied. According to The Hardware, correct frame alignment and edge prep set the foundation for durable tightness that lasts season after season.
Selecting tension methods and hardware
Different methods suit different frames. For wooden frames, staples or screws with flat washers can anchor the edge securely, then tension the cloth with a stretch tool and clamp while you finish. For metal frames, hog rings and pliers are common, followed by turnbuckles on longer runs to maintain even tension. Zip ties are a temporary measure or supplementary support. Stainless hardware is preferred for outdoors to resist corrosion. Measure frame dimensions precisely before cutting; you should have ample edge margin to allow uniform tension. When in doubt, choose methods that distribute tension evenly, avoid high-point sag, and provide a clean edge wrap that won’t cut fingers or catch on clothing.
Frame-specific strategies: wood, metal, or welded wire mesh
Wood frames require careful edge preparation: plan for a 1/4"–1/2" edge margin, then secure along the edge with staples or screws. For metal frames, clamp the cloth at the edge using metal furring strips or angle brackets; add hog rings every 6–12 inches depending on gauge. Welded wire mesh systems benefit from tension bands or turnbuckles threaded into corner brackets to maintain tension. Ensure the cloth sits flat with the smooth side outward and that edges remain straight. Avoid twisting the mesh or over-stretching beyond its elastic limit, as this can create wrinkles or permanent deformation. A common mistake is neglecting mid-span reinforcement on longer panels; plan for supports to keep uniform tension across the entire surface.
Edge anchoring and protective measures
Edge anchoring is where sag tends to start; use hog rings, staples, or zip ties with a backing to keep the edge tight. For long runs, consider adding a supporting frame or a mid-span brace to reduce flex. Add protective edging to prevent cloth fraying and to smooth contact points against wood or metal. In outdoor installations, coat exposed edges with a thin protective strip to reduce wear from weather and debris. Always anchor to structural components rather than just the cloth itself to avoid edge pull-out during wind or impact. Routine checks help catch loosening before it becomes visible sag.
Real-world troubleshooting: sag, wrinkles, and misalignment
Common issues include mid-span sag, wrinkles near corners, or edge pull-out. Quick fixes include re-tensioning from the center outward, re-applying hog rings in a criss-cross pattern, or adding a center support rail. Confirm corners remain square during tensioning, and verify that boundary fasteners are not stripped or loose. If wind or vibration causes repeated loosening, review frame rigidity and consider upgrading fasteners to corrosion-resistant hardware. Regular maintenance—checking quarterly and re-tightening as needed—will extend the life of the installation and keep edges snug.
Tools & Materials
- Hardware cloth (galvanized steel or stainless steel, 19- or 23-gauge, appropriate mesh size)(Choose mesh size (e.g., 1/2)

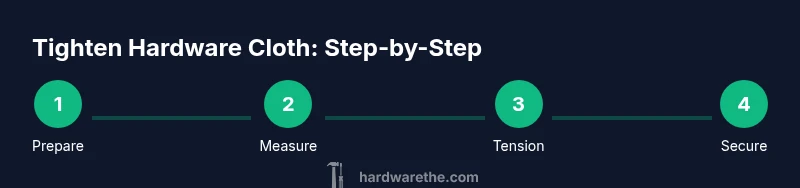

Steps
Estimated time: 60-90 minutes
- 1
Prepare the frame and work area
Clear the workspace and inspect the frame for damage. Clean any rust or burrs on the edge that might wear the cloth. This ensures a clean contact surface for edge anchoring.
Tip: Wear heavy gloves to protect hands from sharp edges; use a dust mask if cutting metal near dust. - 2
Measure cloth with extra margin
Unroll enough hardware cloth to cover the frame with 2–3 inches of extra margin per edge. This margin accounts for tensioning and trimming and helps maintain a square panel.
Tip: Mark the cloth with chalk along the edge for quick alignment during mounting. - 3
Cut hardware cloth to size
Use tin snips or aviation shears to cut cleanly along the marked line. Avoid jagged edges that can cause injuries or snag on the frame.
Tip: Keep a steady slow cut; two-handed control reduces distortion of the mesh. - 4
Position cloth on the frame
Place the cloth on the frame with the smooth side outward. Align edges flush with minimal overhang and ensure corners are square before securing.
Tip: Temporarily tack one edge with a few clips to hold alignment while you tension other sides. - 5
Attach one edge to frame
Begin at a corner and fasten along the edge using staples, screws with washers, or clips. Do not fully tighten yet; leave some give to allow for tensioning.
Tip: Start at the center of an edge and work toward the corners to promote uniform tension. - 6
Apply initial tension along opposite edge
Grip the cloth and gently stretch toward the opposite edge while securing intermittently to keep the edge straight. Check for even surface with no bubbles or wrinkles.
Tip: Work gradually; sudden pulls can create tears in weaker sections. - 7
Secure the edge with hog rings or turnbuckles
Install hog rings along the tensioned edge or fit turnbuckles at the corners for long spans. Ensure rings sit flat and do not pinch the mesh excessively.
Tip: If using hog rings, twist and lock rings in place with the pliers; avoid over-compressing the mesh. - 8
Re-check tension and adjust
Walk the length of the panel, looking for sag or high spots. Re-tighten in areas that show slack and re-seat any misaligned corners.
Tip: Check mid-span for uniform tension; use a level or straightedge for reference. - 9
Trim excess cloth and finish corners
Trim any excess margin and cleanly finish corners to prevent edges from catching on clothing or hands. Inspect for sharp edges or burrs.
Tip: Cover exposed edges with edging strip or protective molding for safety.
FAQ
What is hardware cloth and why does it sag?
Hardware cloth is a metal mesh used for fencing and ventilation. Sag occurs when tension is uneven or the frame flexes, allowing the mesh to loosen over time. With proper edge anchoring and regular maintenance, sag is minimized.
Hardware cloth is a metal mesh used in fences and cages. Sag happens when tension isn’t even or the frame moves; maintain edges well and re-tighten regularly.
What frame types work best with hardware cloth?
Wood frames are common and easy to tension with staples or screws and washers. Metal frames benefit from hog rings and turnbuckles. For welded wire, use tension bands at corners and mid-span supports for even tension.
Wood frames use staples, metal frames use hog rings and turnbuckles, welded wire needs tension bands. Choose based on your setup.
How can I tell I’ve over-tightened the cloth?
Over-tightening can kink or tear the mesh and create edge damage. Look for distorted edges, torn fibers, or hairline cracks near fasteners.
If you see kinks or small tears, you’ve probably over-tightened. Loosen slightly and re-tension evenly.
Are there safety concerns I should address?
Yes. Wear gloves to protect hands from sharp edges, and ensure edges are not exposed where people or pets may contact them. Use UV-resistant coatings for outdoor use when possible.
Wear gloves for sharp edges and keep edges away from skin. Protect outdoor installations from weathering.
Can I tension hardware cloth without tools?
Tensioning without tools is possible but slower and less consistent. Use basic clamps and a helper, but plan to acquire hog rings or turnbuckles for better results.
You can do it by hand, but tools like hog rings and turnbuckles make it reliable and quicker.
How often should I re-tighten outdoor installations?
Check seasonally or after significant weather events. Regular inspection helps catch loosening early and prevents gaps that animals could exploit.
Check it every season or after storms. Re-tighten if you notice slack or buckling.
Watch Video
Main Points
- Measure twice, cut once for accurate margins.
- Distribute tension evenly to avoid localized sag.
- Choose installation hardware suited to the environment.
- Inspect and re-tighten periodically to maintain performance.
- Prioritize edge protection to reduce wear over time.
