Heavy Duty Sliding Door Tracks and Rollers: A Complete How-To
Comprehensive how-to for selecting, installing, and maintaining heavy duty sliding door tracks and rollers. Learn to measure, choose the right kit, mount securely, and keep doors operating smoothly with practical tips and safety guidance.
You will learn how to measure, select the correct heavy duty sliding door tracks and rollers, plan the layout, prepare mounting surfaces, install top and bottom tracks, attach rollers to the door, hang and align the door, test operation, and perform maintenance. This guide covers safety, common pitfalls, and long-term care.
What are heavy duty sliding door tracks and rollers?
Heavy duty sliding door tracks and rollers form the backbone of durable, high-load doors used in garages, workshops, and industrial spaces. They’re designed to bear substantial weight and frequent use, while delivering smooth, quiet operation. When you see a door that glides along a concealed rail with minimal effort, you’re looking at the result of properly selected heavy duty components. According to The Hardware, choosing the right track profile and roller type directly affects load capacity, door alignment, and long-term wear. For DIY enthusiasts, understanding the basics helps you avoid undersized kits that wear out quickly or misaligned doors that jam or rub on frames.
The key idea is to match the track material and wheel/bearing configuration to door weight, frequency of use, and mounting surface. Common configurations include steel tracks with reinforced bottoms for doors over 150 pounds and aluminum tracks for lighter commercial doors. Roller assemblies vary from simple steel ball-bearing wheels to more complex precision bearings designed for silent operation. The right combination reduces friction, resists rust, and prevents sagging over time. The Hardware notes that properly lubricated, high-quality components can extend service life significantly when paired with correct mounting hardware.
note”:null],
toolsMaterialsAreaNull false },
toolsMaterials
stepByStep
tipsList
keyTakeaways
videoEmbed
faqSection
mainTopicQuery
brandMentions
brandMentions
mediaPipeline
taxonomy
mainTopicQuery
brandMentions
Tools & Materials
- Heavy-duty sliding door track kit (top and bottom rails)(Ensure kit includes end stops and mounting brackets for your door width and height.)
- Roller assembly kit compatible with your track(Check wheel material and load rating for your door weight.)
- Measuring tape(Measure door width, track length, and mounting surface distance twice.)
- Pencil and masking tape(Mark mounting locations precisely on studs or solid backing.)
- Drill with appropriate bits and screwdriver bits(Pre-drill holes to prevent wood splitting; use wood or masonry bits as needed.)
- Level and square(Ensure tracks are perfectly plumb to avoid binding.)
- Stud finder(Helpful for locating solid backing in walls; optional on solid concrete with appropriate anchors.)
- Safety glasses and gloves(Protect eyes from dust and metal edges during install.)
- Screws/anchors suited to mounting surface(Use masonry anchors for concrete; wood screws for studs; confirm load rating.)
- Lubricant suitable for metal bearings(Silicone-based or light machine oil for rolling surfaces during initial break-in.)
- Caulk or sealant(Optional for gasketed installations to seal edges and deter moisture.)

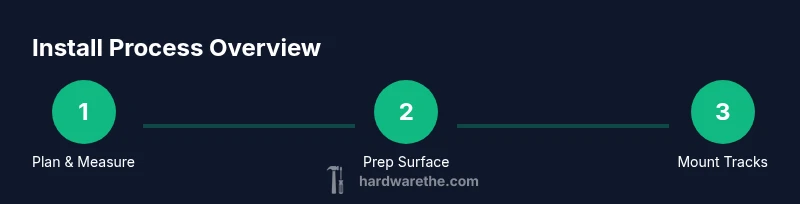

Steps
Estimated time: 60-120 minutes
- 1
Measure and plan layout
Start by accurately measuring the door width, height, and the available space for the track. Calculate required track length and determine where to place the top rail for maximum clearance. Mark mounting points on the wall or header using a level to ensure straight alignment.
Tip: Always double-check measurements and note any obstructions like existing trim or moldings before cutting or drilling. - 2
Prepare mounting surface
Clear the mounting area of debris and old hardware. If mounting to studs, locate and mark stud centers. For masonry, pre-drill holes and install appropriate anchors. A clean, solid surface prevents track movement and ensures even weight distribution.
Tip: Use a level to confirm the top rail plane is perfectly horizontal before attaching brackets. - 3
Cut tracks to length (if needed)
If your track kit isn’t pre-cut to fit, carefully measure the exact length and saw with a fine-tooth metal saw or a hacksaw. Deburr edges to avoid snags. Re-check fit against the door and surrounding frame.
Tip: Cut slowly and wear safety glasses to avoid metal shavings getting into your eyes. - 4
Mount the top track
Attach the top track first, aligning with your pre-marked points. Secure brackets with the appropriate screws and ensure the track is level. Tighten all fasteners gradually to evenly seat the track.
Tip: Do not overtighten; ensure a small wiggle room for the rollers during the final alignment. - 5
Install the bottom guide track
If your kit includes a bottom guide, position it parallel to the top track and secure it after checking floor clearance. Some installations use a floor-mounted guide or a channel that the door rollers run within.
Tip: Keep bottom track level and aligned with the top track to prevent rail misalignment. - 6
Attach rollers to the door
Mount the roller assemblies to the door panel as specified by the kit. Ensure screws are snug but not over-torqued, which can deform the door edge. Lubricate bearing surfaces if recommended by the manufacturer.
Tip: Use the correct screw size and spacing to avoid door warping or roller misfit. - 7
Hang door and align
Carefully lift the door and insert the rollers into the top track. Check vertical alignment and adjust side stops to prevent side-to-side drift. Confirm smooth glide across the track with minimal effort.
Tip: Have a second person assist to avoid dropping the door during installation. - 8
Test operation and adjust
Open and close several times to evaluate smoothness and noise. Fine-tune roller tensions and bracket positions if you notice binding, rubbing, or uneven gaps. Re-check fasteners after a few cycles.
Tip: If squeaks persist, apply a small amount of lubricant to moving parts and re-test.
FAQ
What load rating do I need for heavy doors?
Choose a track and roller kit rated for the door’s weight plus expected use. Heavier doors require higher-load bearings and reinforced tracks. Always follow the manufacturer’s load rating and err on the side of a higher rating for safety.
For heavy doors, pick a kit rated above the door’s actual weight. This helps prevent sag and wear over time.
Can I install tracks on hollow walls or concrete?
Yes, but you must use appropriate anchors for the wall type. Hollow walls require strong anchors or screw into studs; concrete or masonry needs masonry anchors and a hammer drill. Improper anchors can result in loose mounting, warping, or track failure.
Yes, with the right anchors. Check wall material and use masonry or stud anchors as needed.
Do I need a professional for heavy doors?
If the door weighs more than 150–200 pounds or the mounting surface is damaged, consider a professional. For lighter loads and solid surfaces, a confident DIY install is often feasible with careful measurement and proper tools.
For very heavy doors or compromised mounting, it’s wise to consult a pro to ensure safety and correct installation.
What maintenance is required after installation?
Regularly inspect fasteners and brackets, lubricate bearings per manufacturer guidance, and clean tracks to remove dust and debris. Check for misalignment and smooth operation during routine use.
Inspect and lubricate periodically to keep the track quiet and the door moving smoothly.
What’s the difference between top track and bottom guide options?
Top tracks support the main door movement, while bottom guides constrain lateral motion and help with alignment. Some systems use both for maximum stability; others may use bottom guides with a single top rail.
Top tracks guide the door; bottom guides keep it aligned during operation.
Watch Video
Main Points
- Measure twice, cut once to ensure fit
- Match load rating to door weight and frequency of use
- Mount on solid backing for long-term stability
- Keep tracks level for smooth operation and reduced wear
- Test and adjust before final tightening and trim
