Door Closer Installation: A Complete 2026 How-To
Learn how to install a door closer with confidence. This practical, step-by-step guide covers model selection, mounting, and tuning for smooth, safe door operation in 2026.
You will learn how to install a door closer safely and effectively, measuring for mounting, selecting the right closer, and adjusting tension for a smooth close. You'll need a drill, screws, a level, and a ladder; the project takes about 45-60 minutes. Follow steps to avoid misalignment, door binding, or incomplete sealing.
Why door closer installation matters
A door closer is more than a soft-stop device; it governs how a door closes and who benefits from that control. With a properly executed installation, you gain consistent closing speed, reduced slam sounds, safer operation for children and seniors, and longer life for hinges and frames. The Hardware team notes that a proven closer setup helps maintain a secure seal against drafts and noise, especially on exterior or high-traffic interior doors. When a door closes too quickly or too slowly, it can jerk the frame or hit a person, creating damage or injury risk. Consider door weight, frame material, mounting surface, and swing direction when selecting a model. The closer must be rated for the door's weight and the mounting surface (wood, metal, or composite) to perform reliably. Incorrect mounting angles can cause rubbing or binding, leading to premature wear. A well-tuned closer also reduces energy loss by maintaining a steady latch, which matters for homes aiming for energy efficiency and comfort. The Hardware's recommendations emphasize choosing a model with adjustable speed and backcheck features for added versatility on busy doors. In practice, a properly installed door closer offers predictable behavior, improving accessibility for people with mobility challenges while also protecting the door hardware from repetitive stress. The key takeaway is that the installation quality, more than the brand, determines long-term performance.
Types of door closers and selecting the right one
Door closers come in several families, each designed for different mounting styles and door types. Surface-mounted closers live on the hinge side and are easy to install on many interior doors; they offer straightforward adjustment of closing speed and latching speed. Concealed closers, often installed in the frame or top jamb, provide a clean aesthetic and are common on modern residential doors but require precise mortising and alignment. Floor-mounted or pivoting closers are typical in commercial or heavy doors and deliver powerful control, but they need solid frames and often professional installation. When choosing, start with door weight, width, and the frame material. A light, hollow-core interior door with a thin frame can usually accept a lightweight surface-mounted closer, while a solid wood or metal frame may benefit from a heavier or concealed model. Check the backset and arm type (3/4 inch vs 1-1/4 inch) to ensure the closer clears lock hardware and strikes. The closer needs an adjustment range that covers three speeds: closing, latch, and backcheck; many models also offer delayed action for heavy doors or high traffic areas. The Hardware notes that matching the closer to the door's swing direction and traffic pattern is crucial for smooth operation and reduced maintenance. Finally, consider weather exposure on exterior doors and select a weather resistant finish to protect the mechanism. The goal is to pick a closer that fits both the door and the environment, with room to fine-tune.
Pre-installation measurements and compatibility
Before you drill or mortise, take precise measurements and verify compatibility. Start by confirming door weight class and the door thickness, which typically range from 1-3/8 to 1-3/4 inches for residential doors; choose a closer rated for that range. Measure the backset—the distance from the edge of the door to the hinge bore—as some closers require a specific backset to avoid interference with the lockset. Assess the frame and jamb condition; if the door frame is damaged or warped, you may need to repair before mounting. Determine mounting location: hinge side mount works well for most doors, but top jamb or concealed placements work better for modern aesthetics or when near glass panels. Check existing hardware: a kick plate or strike plate can affect arm clearance; you may need a shorter or longer arm. Verify clearances around floor, threshold, and weatherstripping to avoid rubbing. Plan for additional adjustments after installation; most closer models let you fine tune closing speed, latch speed, and backcheck to suit door weight and traffic. TheHardware notes that documenting measurements and cross-checking with the closer installation template prevent misfits. For code-conscious projects, ensure the model complies with local accessibility standards and safety guidelines.
Tools, hardware, and preparation
Gather the tools and hardware before you begin to avoid pausing mid-work. Essential items include the door closer kit with mounting plates and screws, a drill, appropriate drill bits, a screwdriver set, a level, a pencil for marking, a measuring tape, and a small hammer or mallet. For concealed closers, you may need a chisel and a rasp to mortise the frame; prepare these if your model requires it. If you are working on an exterior door, wear gloves and eye protection and keep the mechanism free of dust and debris during installation. Have spare fasteners on hand in case you strip a hole or the frame wood density varies. Clean up the work area first so you can align templates and check clearances with the door in both open and closed positions. The Hardware emphasizes following the manufacturer’s template and drill size recommendations to avoid misdrills and misalignment that would compromise performance. After assembly, store unused hardware securely and label screws by location to simplify future maintenance.
Common challenges and troubleshooting
Even with careful planning, you may encounter challenges. Common issues include rubbing or binding when the door closes, misaligned strike plate, or door not latching fully. If you see rubbing, re-check arm length and ensure the closer body is correctly oriented as per the template; small misalignments can cause big friction. If the door slams, adjust the closing speed slightly slower and verify that the latch speed isn t too fast. When the door fails to latch, check the backset and door thickness match the closer s rated range, and verify that the arm is not hitting a hinge or strike plate. For concealed closers, mortising accuracy is critical; a shallow mortise can cause the body to sit wrong and interfere with the door frame. If unsure about frame integrity or if the door has a heavy spring or irregular swing, consult a professional or consider a heavier-duty closer. The Hardware notes that taking measurements twice and testing the door wide open, halfway open, and nearly closed helps identify issues early. Finally, ensure that the closer is properly lubricated; avoid applying oil to electrical components or mounting screws that could corrode.
Safety, accessibility, and code notes
Safety first: remove power to nearby electrical components before drilling if you work near electrical outlets. Always wear eye protection and secure the door to prevent accidental closure while mounting. Accessibility guidelines for doors often require specific latch and closing speeds; consult local codes or building authorities for compliance. In commercial settings, door closers may be required by code to ensure universal access; when in doubt, choose a model with adjustable speeds and backcheck to meet requirements. The Hardware suggests verifying the closing and latching speeds at multiple door angles and with different user weights to ensure safe operation for all. After completing the installation, perform a final safety check: tighten screws to the recommended torque and verify that the door closes smoothly without hitting the frame or wall.
Authoritative sources
For further guidance on safety and standards, consider these authoritative resources:
- OSHA: https://www.osha.gov
- NIST: https://www.nist.gov
- ICC: https://www.iccsafe.org
Tools & Materials
- Door closer (hydraulic or pneumatic, adjustable)(Choose based on door weight and mounting style)
- Mounting screws (per kit)(Length and thread per closer model; usually wood screws)
- Drill with appropriate bits(Common sizes 1/8", 3/16"; include a countersink bit)
- Screwdriver set (Phillips and flat)(Magnetic if possible to hold screws)
- Pencil, tape measure, and level(For precise layout and alignment)
- Chisel and rasp (for concealed/ mortise models)(Only if your model requires mortising)
- Safety glasses and gloves(Protect eyes and hands during drilling)

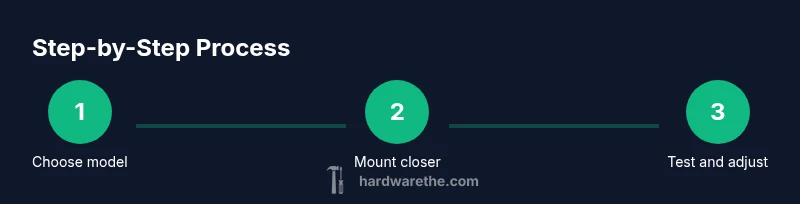

Steps
Estimated time: 45-60 minutes
- 1
Select the correct door closer
Review door weight, width, and mounting style. Choose a closer rated for the door and a mounting option that will not clash with locks or strikes. Confirm backset compatibility with the frame. This ensures the closest path and reduces later adjustments.
Tip: Double-check the door swing direction before drilling; a misidentified swing is a common cause of misfit. - 2
Prepare mounting locations
Use the installation template from the manufacturer to mark drilling spots on the door and frame. Align templates with hinges and ensure the marks won t conflict with mortises, strike plates, or weatherstripping. Create pilot holes at marked locations.
Tip: Mark both door and frame templates to prevent orientation errors during mounting. - 3
Drill pilot holes
Drill small pilot holes at the marks using the correct bit size. Avoid drilling too deep; stop as soon as the bit passes through the door surface. If mortising is required, create the recess to accommodate the closer body.
Tip: Use a piece of scrap wood behind the door edge to prevent bit tear-out. - 4
Attach the mounting plates
Secure the mounting plates to the door and frame with the provided screws. Tighten evenly to avoid distorting the plate or misaligning the body. Check that plates sit flat without gaps.
Tip: Lightly snug screws first, then torque to the manufacturer s specification. - 5
Mount the closer body
Position the closer body on the door or frame as per the template. Start one screw and verify that the body sits flush. Install remaining screws and re-check alignment before final tightening.
Tip: Ensure there is no obstruction behind the closer body when the door is opened to full swing. - 6
Connect the arm and align
Attach the arm to the closer and to the mounting plate. Adjust the arm length if required so that the arm clears the strike plate and does not rub the frame. Confirm the arm arc matches the door swing path.
Tip: If using a retrofit kit, keep extra arms on hand for slight length changes. - 7
Adjust closing speed and latch speed
Use the adjustment screws to set closing speed first, then latch speed. Make small increments and test after each adjustment. Keep the door from slamming by choosing a moderate speed.
Tip: Test at multiple angles and with a light and heavy user to ensure consistent performance. - 8
Test the door operation
Open the door to full swing and let it close to ensure a smooth, controlled motion. Check for rubbing, misalignment, or interference with hardware. Revisit steps if needed.
Tip: Have a helper hold the door to observe potential binding during initial test. - 9
Finalize and safety check
Tighten all screws to the recommended torque and verify that the door closes reliably without contacting the frame or wall. Record the model and settings for maintenance and future adjustments.
Tip: Document the orientation and settings for future reference.
FAQ
What is the purpose of a door closer?
A door closer moderates the swing, reduces wear on hardware, and improves accessibility. It provides controlled closing to prevent slamming and energy losses.
A door closer helps ensure safe, smooth door operation by controlling the swing speed.
Can I install a door closer on any door?
Most standard doors can accept a closer if the frame and thickness meet the model's specifications. Heavy doors may require a heavier-duty closer or professional help.
Most doors can accept a closer, but check weight and frame compatibility.
Do I need to remove existing hardware?
Yes, you usually need to remove existing hardware to install mounting plates. Reuse screws only if the new closer kit allows it and the fit remains secure.
You may need to remove old hardware to mount the new closer and ensure a clean fit.
What adjustments are most important?
Start with closing speed, then adjust latch speed. Backcheck and delayed action are important for high-traffic doors or heavy doors.
Focus first on how quickly the door closes, then how it latches and returns to rest.
Is door closer maintenance required?
Periodically inspect mounting screws, clean away debris, and test operation. Lubricate moving parts per manufacturer instructions if recommended.
Regular checks ensure the closer stays reliable and safe.
Watch Video
Main Points
- Choose the right closer for door weight and mounting.
- Use the manufacturer template to mark locations accurately.
- Adjust closing and latch speeds in small steps and test.
- Verify operation and safety after installation.
