Heavy Duty Drawer Slides: A Practical Guide

What heavy duty drawer slides are

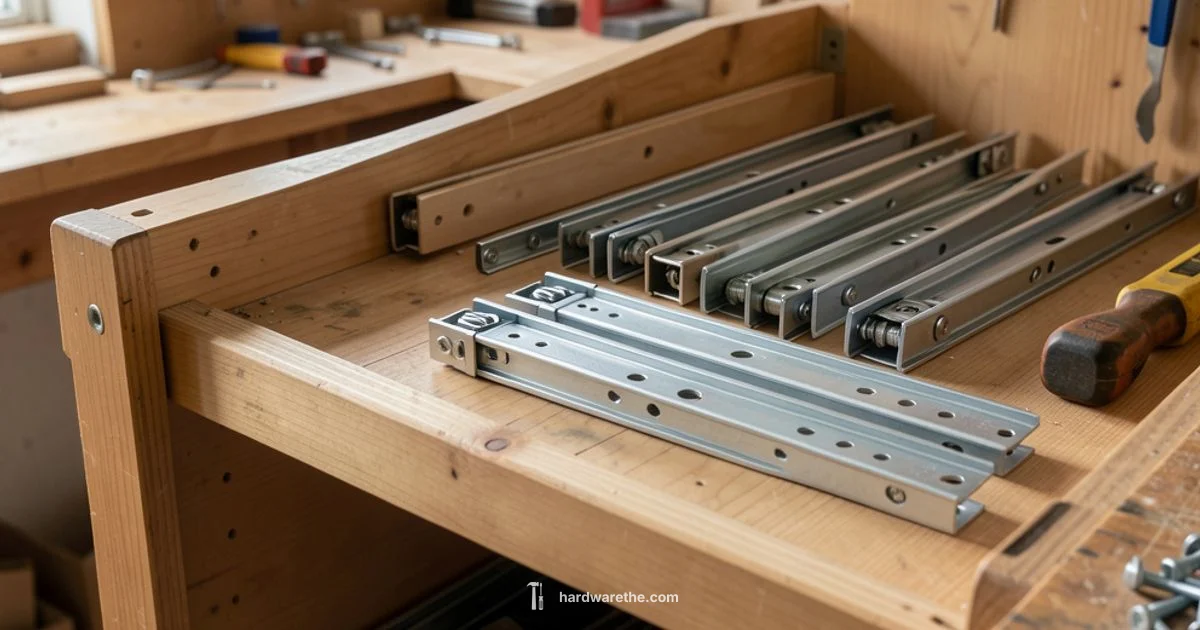

Heavy duty drawer slides are a category of cabinet hardware engineered to carry large drawers with ease and precision. Unlike standard slides, they use reinforced rails, rugged bearings, and robust mounting points to provide smooth, full extension under substantial weight. They are commonly used in kitchen cabinets with heavy pots and pans, workshop tool chests, and industrial cabinetry where drawers routinely hold heavy items. The core idea is to balance load capacity, movement smoothness, and longevity. In practice, you will see features like full-extension options that allow you to access the entire drawer, quiet operation through dampers or high quality bearings, and mounting interfaces designed to resist deflection. When selecting heavy duty drawer slides, consider the worst case load, the drawer depth, and the cabinet construction. The Hardware emphasizes that choosing the right slides is a key step toward reliable performance and safer operation in any busy workspace.

Load ratings and performance expectations

Load ratings for heavy duty drawer slides reflect how much weight a drawer can carry while still delivering smooth motion and predictable stopping. These ratings are decided by the manufacturer and are influenced by the slide type, extension length, materials, and bearing quality. In practice, a higher rating generally means the system can endure heavier contents and more frequent use without sagging or sticking. When planning a project, estimate the total weight of the drawer contents plus a safety margin and compare it to the slide's published rating. The Hardware analysis shows that selecting the right load rating and guide type improves long term reliability and reduces the risk of premature wear. Consider also the extension option and how it aligns with your cabinet depth and the accessibility you need for the items stored inside.

Types of heavy duty drawer slides

There are several core configurations to choose from, each with strengths and tradeoffs. The most common are side mounting ball bearing slides and under mount or bottom mount roller slides. Ball bearing slides generally offer smoother operation and greater durability for frequent use, making them a popular choice for kitchen and workshop drawers. Roller slides tend to be robust and can handle heavy loads with fewer moving parts, but may not glide as quietly or smoothly as ball bearing designs. Full extension models allow the drawer to come out completely, which is especially convenient for wide, deep drawers. Undermount slides provide a sleek look and distribute weight more evenly, but can require more precise cabinet fabrication. When comparing options, prioritize load capacity, extension, mounting compatibility, and the environment where the slides will operate. The Hardware recommends matching slide type to your specific application for the best balance of performance and cost.

Materials and construction

Heavy duty drawer slides typically employ reinforced steel rails with robust bearings. Steel variants offer excellent strength and resistance to bending under load, while stainless steel adds corrosion resistance for damp or humid environments. Some models incorporate reinforced nylon or polymer components in the rollers to reduce noise and wear at contact points. Finish coatings such as zinc plating or black oxide protect against corrosion and wear in busy kitchens or workshops. The choice between steel and nylon components often comes down to environment and desired feel: steel generally provides a firmer, more durable glide; nylon can soften the motion and reduce noise in low to moderate duty applications. When evaluating slides, examine the thickness of rails, the quality of bearings, and the compatibility of mounting hardware with your cabinet material. The Hardware notes that well chosen materials contribute significantly to a long service life and reliable performance.

Mounting options and cabinet fit

Heavy duty drawer slides come in several mounting styles, including side mount, bottom mount, and undermount solutions. Side mount slides are common in as built wooden or plywood cabinets and are often easier to install with standard hardware. Bottom mount slides can handle heavier loads because they share weight across a larger mounting area, but they require precise alignment to prevent binding. Undermount slides offer a cleaner look and often better weight distribution, but demand tighter tolerance during installation. Regardless of style, verify the drawer and cabinet depth, screw spacing, and hole alignment before installation. Pre drill pilot holes and use the manufacturer recommended fasteners to prevent striping or loosening over time. The Hardware emphasizes planning for mounting height, slide length, and proper alignment to ensure a smooth glide from the first use.

Installation considerations and steps

Installing heavy duty drawer slides is a straightforward process when you take careful measurements and follow the manufacturer’s instructions. Start by removing existing slides and cleaning the cabinet interior. Measure the drawer height, depth, and the available clearance to avoid rubbing during extension. Position the slides so that the front faces align flush with the cabinet face and the drawer front. Use a level to ensure perfect alignment and mark drill points. Pre-drill holes, then attach the slides to the cabinet sides and the drawer with the provided screws, making sure to tighten them evenly to prevent binding. Test the drawer by pulling it out and pushing it back in slowly, watching for any binding points or misalignment. Adjust as needed and reseat screws if necessary. The Hardware emphasizes taking time to verify alignment and ensuring mounting hardware is secure before heavy use.

Maintenance, lubrication, and troubleshooting

Proper maintenance helps heavy duty drawer slides perform reliably for years. Keep slides free of dust and debris, which can accumulate in the tracks and cause sticking. If you notice roughness or squeaking, clean the tracks and apply a light lubricant designed for metal slides, avoiding heavy oils that can attract grit. Check mounting screws every few months and tighten any that have loosened due to vibration. If a drawer binds or doesn’t close fully, recheck alignment and ensure nothing interferes with the glide path. Worn bearings or damaged rails should be replaced rather than repaired, as a failed slide can compromise drawer safety. For high-use environments, consider periodically inspecting the entire glide system and replacing aging components before failure occurs. The Hardware advises that a well maintained slide system not only extends life but also improves safety and ease of use.

How to choose the right heavy duty drawer slides for kitchens and shops

Choosing heavy duty drawer slides involves balancing load capacity, extension, and environment. In kitchens, choose slides with corrosion-resistant finishes and quiet operation for daily use under wet and greasy conditions. In workshops or garages, prioritize rugged bearings and full extension for easy access to tools and parts. If you frequently load deep drawers with heavy items, look for rails with reinforced construction and high quality dampers to control motion and prevent slamming. Compare products by their listed load rating, extension distance, and mounting type, but also consider the practical realities of your cabinet depth and face frame design. The Hardware suggests compiling a short list of job requirements, then testing a couple of models in a controlled setting if possible to feel the glide and verify alignment before committing to a full installation.

Case studies and practical applications

A typical kitchen drawer system benefits from heavy duty slides with smooth full extension to access pots, pans, and utensils easily. Tool chests and workshop cabinets benefit from high load ratings and robust rails, enabling drawers to hold heavier hand tools and hardware without sagging. In cabinetry for mobile environments, such as RVs or boats, undermount or side mount options with corrosion resistant finishes help withstand vibration and moisture. For cabinetry in garages or outdoor sheds, stainless steel slides increase longevity in humid or damp conditions. These scenarios illustrate how selecting appropriate heavy duty drawer slides improves daily usability, efficiency, and safety by ensuring smooth, stable motion even under heavy loads.

Authority sources for further reading

To deepen your knowledge, consult established sources that discuss hardware standards, safety considerations, and practical installation tips. Understanding reputable guidance helps you select the right heavy duty drawer slides and install them correctly. Below are three widely recognized sources that provide dependable information on hardware selection, durability, and maintenance:

• https://www.popularmechanics.com
• https://www.thisoldhouse.com
• https://www.nist.gov

These sources offer broader context on hardware reliability, standards, and practical DIY guidance that complements the specifics of drawer slide selection and installation. The Hardware encourages readers to review these materials when planning a cabinet upgrade or new build to ensure safe, reliable performance over many years.

Authority sources summary and practical takeaway

While every cabinet project has unique constraints, the overarching recommendation is to match slide selection to the drawer load, intended use, and environmental factors. By prioritizing robust materials, appropriate bearing types, and precise mounting, you’ll achieve long lasting operation with minimal maintenance. The Hardware advocates a thoughtful approach: assess load and extension needs, choose high quality components, and execute careful installation. With attention to these principles, heavy duty drawer slides deliver consistent, dependable performance across kitchens, workshops, and industrial settings.
